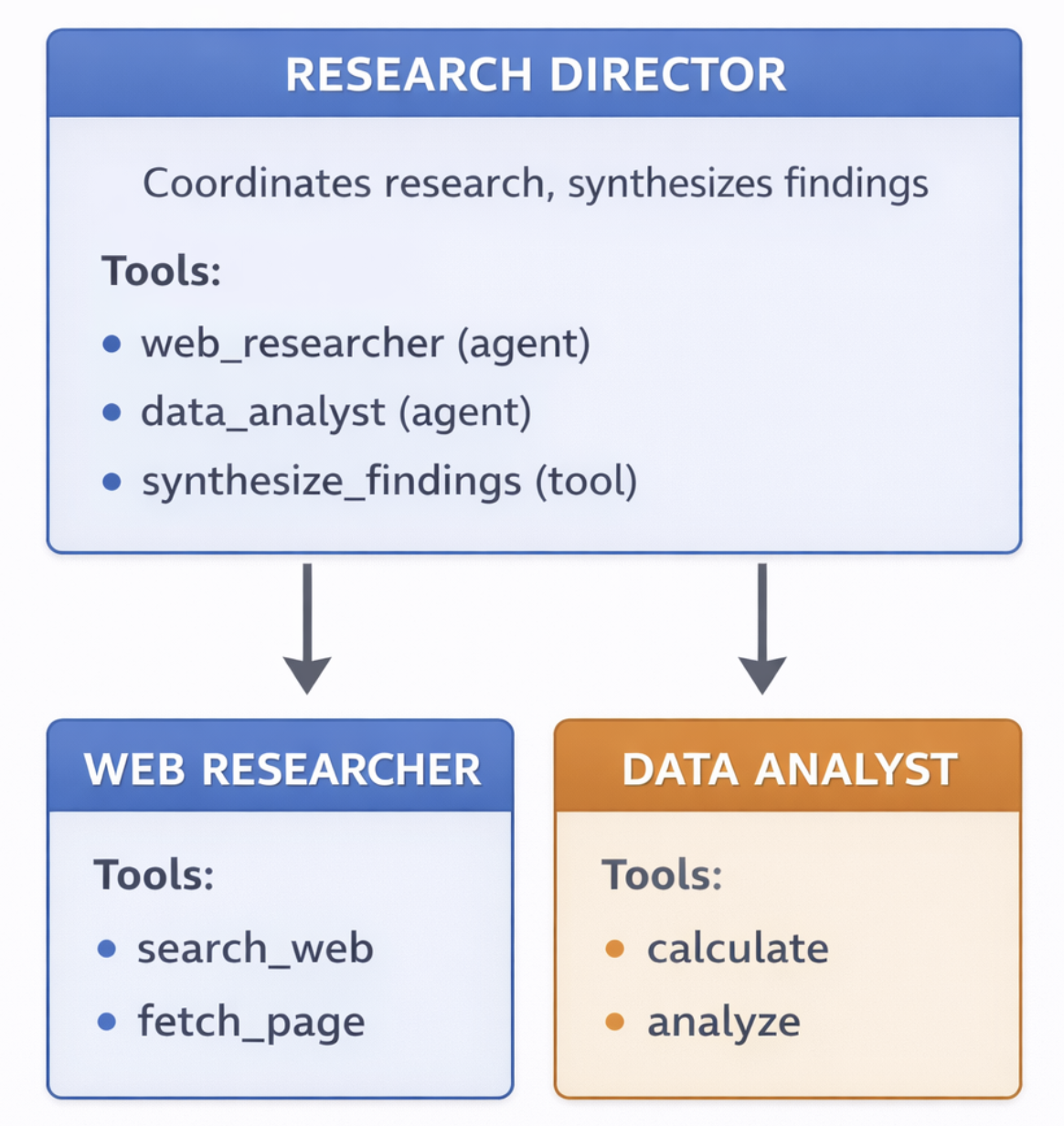

Architecture

Complete Code
Copy
Ask AI
import asyncio
from opper_agents import Agent, tool, hook
from pydantic import BaseModel, Field
# Web Researcher tools
@tool
def search_web(query: str) -> str:
"""Search the web for information on a topic."""
# Simulated search results
return f"""Search results for '{query}':
1. Study shows 40% increase in AI adoption in 2024
2. Market size expected to reach $500B by 2025
3. Key players include major tech companies
4. Healthcare and finance lead adoption rates"""
@tool
def fetch_page(url: str) -> str:
"""Fetch and extract content from a webpage."""
# Simulated page content
return f"""Content from {url}:
The AI industry has seen remarkable growth. Recent studies indicate
that enterprise adoption has doubled year-over-year. Key drivers include
improved accessibility of tools and demonstrated ROI across industries."""
# Data Analyst tools
@tool
def calculate_growth(start: float, end: float) -> dict:
"""Calculate growth metrics between two values."""
growth = ((end - start) / start) * 100
return {
"absolute_change": end - start,
"percentage_growth": round(growth, 2),
"growth_factor": round(end / start, 2)
}
@tool
def analyze_trend(data_points: list[float]) -> dict:
"""Analyze a trend from a series of data points."""
if len(data_points) < 2:
return {"error": "Need at least 2 data points"}
avg = sum(data_points) / len(data_points)
trend = "increasing" if data_points[-1] > data_points[0] else "decreasing"
return {
"average": round(avg, 2),
"min": min(data_points),
"max": max(data_points),
"trend": trend,
"data_points": len(data_points)
}
# Synthesis tool for the director
@tool
def synthesize_findings(findings: list[str]) -> str:
"""Combine multiple research findings into a coherent summary."""
combined = "\n".join(f"• {f}" for f in findings)
return f"Synthesized findings:\n{combined}"
# Output schema
class ResearchReport(BaseModel):
title: str = Field(description="Report title")
summary: str = Field(description="Executive summary (2-3 sentences)")
key_findings: list[str] = Field(description="Main findings (3-5 points)")
data_insights: list[str] = Field(description="Quantitative insights")
recommendations: list[str] = Field(description="Action recommendations")
confidence: float = Field(description="Confidence score 0-1")
# Create specialist agents
web_researcher = Agent(
name="WebResearcher",
description="Searches the web and extracts information from pages",
instructions="You are a thorough web researcher. Search for relevant information and extract key facts.",
tools=[search_web, fetch_page]
)
data_analyst = Agent(
name="DataAnalyst",
description="Analyzes numerical data and identifies trends",
instructions="You are a data analyst. Focus on numbers, growth rates, and statistical insights.",
tools=[calculate_growth, analyze_trend]
)
# Hooks for visibility
@hook("tool_call")
async def log_delegation(context, agent, tool, parameters, **kwargs):
if agent.name == "ResearchDirector":
if "researcher" in tool.name.lower() or "analyst" in tool.name.lower():
print(f" 📋 Delegating to {tool.name}...")
@hook("agent_end")
async def log_completion(context, agent, **kwargs):
print(f" ✓ {agent.name} completed ({context.iteration} iterations)")
# Create the director agent
research_director = Agent(
name="ResearchDirector",
description="Conducts comprehensive research by coordinating specialists",
instructions="""You are a research director. When given a topic:
1. First, use the web researcher to gather general information
2. Then, use the data analyst to analyze any numerical data
3. Finally, synthesize all findings into a comprehensive report
Be thorough but efficient. Delegate appropriately to your team.""",
tools=[
web_researcher.as_tool(),
data_analyst.as_tool(),
synthesize_findings
],
output_schema=ResearchReport,
hooks=[log_delegation, log_completion],
max_iterations=15
)
async def main():
print("=" * 60)
print("RESEARCH AGENT DEMO")
print("=" * 60)
topic = "AI adoption trends in enterprise"
print(f"\nResearch Topic: {topic}\n")
print("-" * 60)
result = await research_director.process(
f"Research the following topic and provide a comprehensive report: {topic}"
)
print("\n" + "=" * 60)
print("FINAL REPORT")
print("=" * 60)
print(f"\nTitle: {result.title}")
print(f"\nSummary: {result.summary}")
print(f"\nKey Findings:")
for i, finding in enumerate(result.key_findings, 1):
print(f" {i}. {finding}")
print(f"\nData Insights:")
for insight in result.data_insights:
print(f" • {insight}")
print(f"\nRecommendations:")
for rec in result.recommendations:
print(f" → {rec}")
print(f"\nConfidence: {result.confidence:.0%}")
if __name__ == "__main__":
asyncio.run(main())
Sample Output
Copy
Ask AI
============================================================
RESEARCH AGENT DEMO
============================================================
Research Topic: AI adoption trends in enterprise
------------------------------------------------------------
📋 Delegating to web_researcher...
✓ WebResearcher completed (2 iterations)
📋 Delegating to data_analyst...
✓ DataAnalyst completed (2 iterations)
✓ ResearchDirector completed (4 iterations)
============================================================
FINAL REPORT
============================================================
Title: AI Enterprise Adoption: 2024 Trends and Analysis
Summary: Enterprise AI adoption has grown by 40% in 2024, with the
market projected to reach $500B by 2025. Healthcare and finance
sectors are leading the adoption curve.
Key Findings:
1. 40% year-over-year increase in enterprise AI adoption
2. Market size projected to reach $500B by 2025
3. Healthcare and finance are leading sectors
4. Improved tool accessibility driving adoption
5. Demonstrated ROI is a key decision factor
Data Insights:
• 100% growth in adoption (doubled year-over-year)
• Growth factor of 2.0x compared to previous period
• Increasing trend across all measured sectors
Recommendations:
→ Prioritize AI initiatives in high-ROI areas
→ Invest in accessible AI tools for broader adoption
→ Focus on healthcare and finance use cases
→ Track and communicate ROI metrics
Confidence: 85%
Key Concepts Demonstrated
- Agent composition: Specialists wrapped as tools for the director
- Hierarchical delegation: Director coordinates without micromanaging
- Specialized roles: Each agent has focused expertise
- Structured output: Comprehensive report with typed fields
- Visibility hooks: Track delegation and completion
Variations
Add More Specialists
Copy
Ask AI
# Add a fact-checker agent
fact_checker = Agent(
name="FactChecker",
description="Verifies claims and checks for accuracy",
tools=[verify_claim, cross_reference]
)
research_director = Agent(
name="ResearchDirector",
tools=[
web_researcher.as_tool(),
data_analyst.as_tool(),
fact_checker.as_tool(), # New specialist
synthesize_findings
]
)
With Memory for Context
Copy
Ask AI
research_director = Agent(
name="ResearchDirector",
tools=[...],
enable_memory=True # Remember previous research
)
# Research builds on previous findings
await research_director.process("Research AI in healthcare")
await research_director.process("Compare this to AI in finance")
